Zest® Box Facade Sunblades

Overview

Zest® Box Blade is an excellent choice for building facades, delivering a decorative and effective sun shading solution. This modular system covers Arcadia's range of standard Box Profiles and is manufactured from extruded aluminium. Secret fix cleats, bracket connections, end plates, or basic external cleat connections can all be used to connect the blades profiles to building facades. This range is most commonly used for larger facades requiring greater spans and required to withstand larger wind loadings Fixed blades can be installed horizontally, vertically, or at any angle or pitch desired.

Thickness (mm) Depth (mm) Span (mm) Profile
20 300 2000
20 400 2000
20 450 2050
Thickness (mm) Depth (mm) Span (mm) Profile
40 80 3400
40 140 3400
40 200 3400
Thickness (mm) Depth (mm) Span (mm) Profile
45 75 3900
45 100 3650
45 135 3900
45 180 3700
45 235 3800
45 285 3850
45 335 3850
45 385 3850
45 435 3800
45 485 3800
45 535 3800
45 585 3450
45 635 3800
Thickness (mm) Depth (mm) Span (mm) Profile
50 50 2800
50 50 Clip 2800
50 100 3300
50 100 Clip 33000
50 150 3900
50 150 Clip 3900
50 200 4000
50 200 Clip 4150
Thickness (mm) Depth (mm) Span (mm) Profile
55 190 4100
55 340 4000
55 490 3900
55 640 3900
Thickness (mm) Depth (mm) Span (mm) Profile
75 190 4500
75 240 4800
75 340 4150
75 390 4150
75 440 4150
75 490 4150
75 540 4700
75 590 4700
75 640 4700

Zest® Box Range

Zest® Box 20

Thickness (mm) Depth (mm) Span (mm) Profile
20 300 2000
20 400 2000
20 450 2050

Zest® Box 40

Thickness (mm) Depth (mm) Span (mm) Profile
40 80 3400
40 140 3400
40 200 3400

Zest® Box 45

Thickness (mm) Depth (mm) Span (mm) Profile
45 75 3900
45 100 3650
45 135 3900
45 180 3700
45 235 3800
45 285 3850
45 335 3850
45 385 3850
45 435 3800
45 485 3800
45 535 3800
45 585 3450
45 635 3800

Zest® Box 50

Thickness (mm) Depth (mm) Span (mm) Profile
50 50 2800
50 50 Clip 2800
50 100 3300
50 100 Clip 33000
50 150 3900
50 150 Clip 3900
50 200 4000
50 200 Clip 4150

Zest® Box 55

Thickness (mm) Depth (mm) Span (mm) Profile
55 190 4100
55 340 4000
55 490 3900
55 640 3900

Zest® Box 75

Thickness (mm) Depth (mm) Span (mm) Profile
75 190 4500
75 240 4800
75 340 4150
75 390 4150
75 440 4150
75 490 4150
75 540 4700
75 590 4700
75 640 4700

Span Clarification

  • Spans provided are based on generic wind pressure of 1 KPa. Please contact our team if you require project specific wind pressures or terrain categories.
  • Spans provided are an indicative guide and are subject to the building location and applied wind speeds
  • Spans provided are based on average end fixity value and subject to final connection detail
  • Where products are also acting as a balustrade, span capacity will be reduced.
  • Spans are provided where the product is used standalone, where additional products are connected, span capacity may be reduced.
  • For detailed span information, contact Arcadia 1300 458 458 or email sales@arcadia.com.au

Features

Mix and Match Blades

Any of the Zest® Box series profiles can be combined to create various textures, from fine and clean to bold and distinct. This range of profiles helps break up large facades with subtle protrusions that create texture through shadow, depth, colour and tone and can even be designed to create artwork imagery.

Enhancing a Building's Facade

Enhance a building's visual impact by integrating Arcadia' Zest® façade sunblade systems. Our sunblade systems not only enhances a building's appearance but also enhances its performance with solar shading functionality and improves energy efficiency. This system is designed to provide optimal reduction of solar heat gain without compromising ambient light levels in the building.

Product Benefits

Arcadia's Zest®Box have multiple benefits, these include: light weight, non-combustible, termite resistant, low maintenance, 100% Australian made, limitless profiles, vast range of Colours available and include Product warranty. And can also incorporate integrated LED lighting strips for a façade feature

Lighting Up Your Facade

Arcadia's Zest® box range can incorporate integrated LED lighting adding feature your building facade. Incorporation of this enables designers to incorporate endless colour range at night to showcase your corporate colours or celebrate any special occasion.

Sustainable Building Designs

A higher green star ratings provide a high class building with better returnable for a building owners and developers. Majority of tenants want to lease a building which is sustainably designed which results in greater yields for building owners. Arcadia Zest® Sunblades make a great contribution to achieving sustainability, which often includes, an operable system to allow inlet light for heating and block unwanted heat loads at peak periods during harsh weather climates

Promote Efficiency

With the operable control an adjustment can, be made to synchronise these systems to suit the effect building environment. The Zest® Sunblades can be operated manually, by push button, remote control or using a Solar IQ tracking unit. The Solar IQ tracks the orbit of the sun and is compatible with the building Management System (BMS) allowing the blades to adjust to suit the sun angle throughout the seasons.

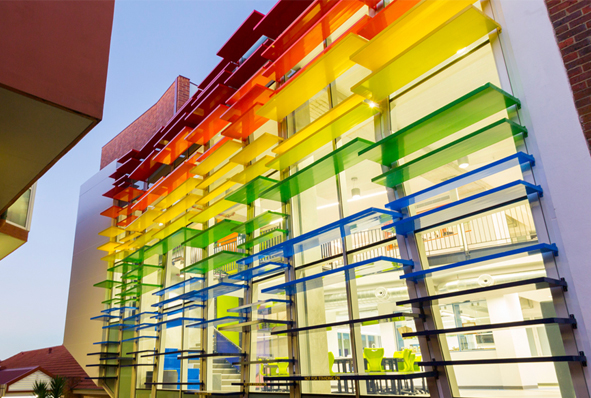

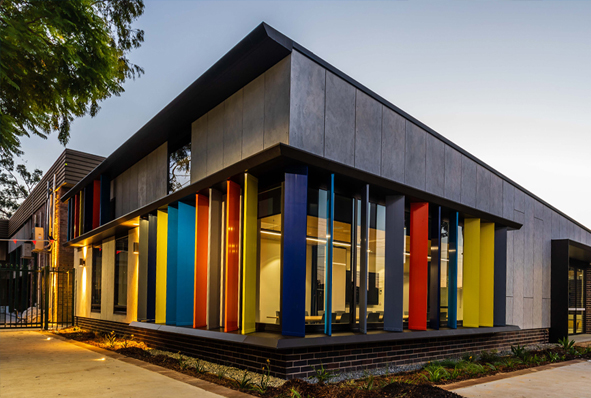

Add a splash of colour

Designers have the ability to select from an endless collection of colours and finishes to perfectly complement creative architectural designs - from Granum® timber-look powder coat, anodise colours and finishes, the possibilities are limitless. Our broad colour collection is Australian Standard Compliant, sustainable, durable, and are guaranteed with a long-term warranty.

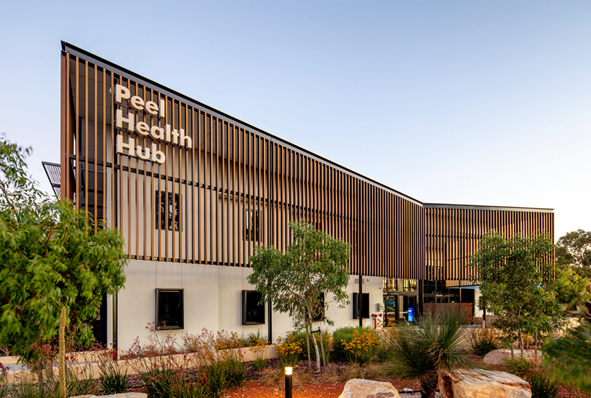

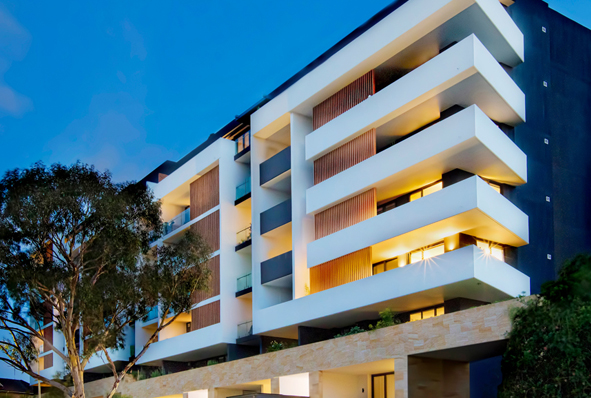

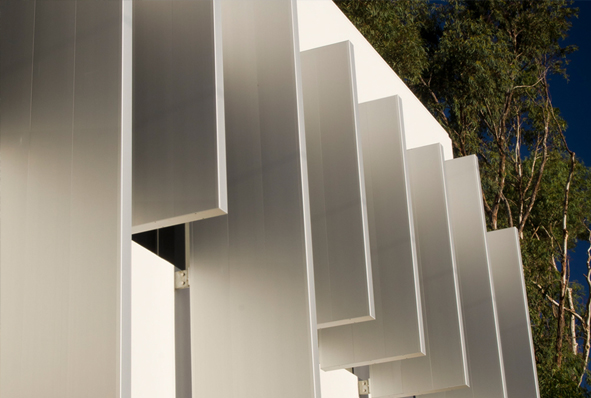

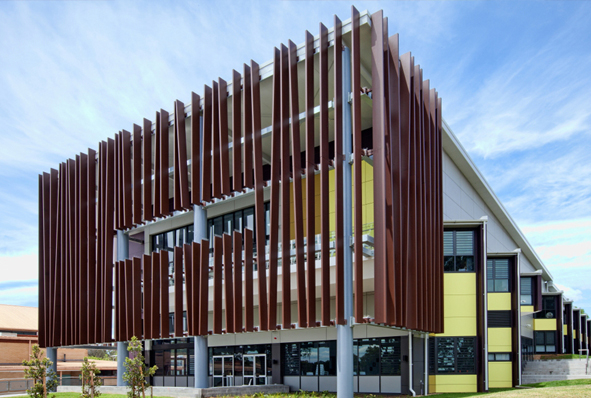

Applications
