ZEST® Decorative

Overview

Zest® Decorative Box Battens are an excellent choice for building facades, Feature walls, soffits and ceilings, providing a decorative and effective screening and cladding solution. This Decorative batten system covers Arcadia's broad range of Box Profiles and is manufactured from extruded aluminium. Secret fixing systems using a range of clipping, bracket, end plates and cleat systems can be used to connect the blades profiles to a broad range of substrates and building facades. This range can be installed horizontally, vertically, or at any angle or pitch desired.

Thickness (mm) Depth (mm) Span (mm) Profile
40 80 3500
40 140 3350
40 200 3400
40 80 Clip 3400
Thickness (mm) Depth (mm) Span (mm) Profile
45 50 4250
45 75 3900
45 100 3650
45 135 3900
45 180 3700
Thickness (mm) Depth (mm) Span (mm) Profile
50 50 2800
50 50 Clip 2800
50 100 3300
50 100 Clip 3300
50 150 3900
50 150 Clip 3900
50 200 4000
50 200 Clip 4150

Range

Zest® B40

Thickness (mm) Depth (mm) Span (mm) Profile
40 80 3500
40 140 3350
40 200 3400
40 80 Clip 3400

Zest® B45

Thickness (mm) Depth (mm) Span (mm) Profile
45 50 4250
45 75 3900
45 100 3650
45 135 3900
45 180 3700

Zest® B50

Thickness (mm) Depth (mm) Span (mm) Profile
50 50 2800
50 50 Clip 2800
50 100 3300
50 100 Clip 3300
50 150 3900
50 150 Clip 3900
50 200 4000
50 200 Clip 4150

Span Clarification

  • Spans provided are based on generic wind pressure of 1 KPa. Please contact our team if you require project specific wind pressures or terrain categories
  • Spans provided are an indicative guide and are subject to the building location and applied wind speeds
  • Spans provided are based on average end fixity value and subject to final connection detail
  • Where products are also acting as a balustrade, span capacity will be reduced.
  • Spans are provided where the product is used standalone, where additional products are connected, span capacity may be reduced.
  • For detailed span information, contact Arcadia 1300 458 458 or email sales@arcadia.com.au

Features

Mix and Match Blades

Any of the Zest® Decorative Box battens include a range of differing blade depths and widths enabling designers to create feature within your Façade. This variation and range of profiles helps break up large facades with subtle protrusions that create texture through shadow, depth, colour and tone

Lighting up your Batten Facade

Zest® Decorative Box range can incorporate integrated LED lighting adding feature to your building ceiling, walls or facade. Incorporation of this enables designers to incorporate endless colour range at night to showcase your corporate colours or celebrate any special occasion. Lighting can be designed to provide face lighting, back lighting or side lighting to create different effects within your Façade design.

Product Benefits

Arcadia's Zest Decorative Box battens have multiple benefits, including large spans, lightweight, noncombustible, low maintenance, limitless profiles, vast range of Colours available, 100% Australian made and include Product warranty.

Add a splash of colour

Designers have the ability to select from an endless collection of colours and finishes to perfectly complement creative architectural designs - from Bright Powdercoat's to Granum® timber-looks to shiny metallic anodise finishes – with Arcadia’s Zest Decorative battens, the possibilities are limitless. Our broad colour collection is Australian Standard Compliant, sustainable, durable, and are guaranteed with a long-term warranty.

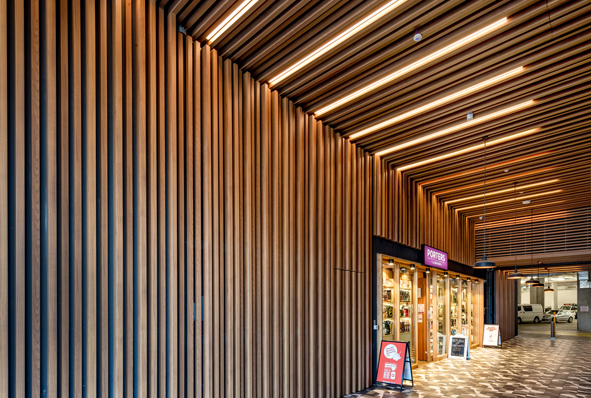

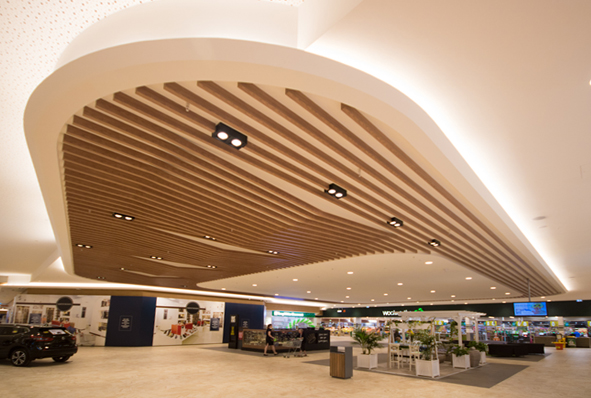

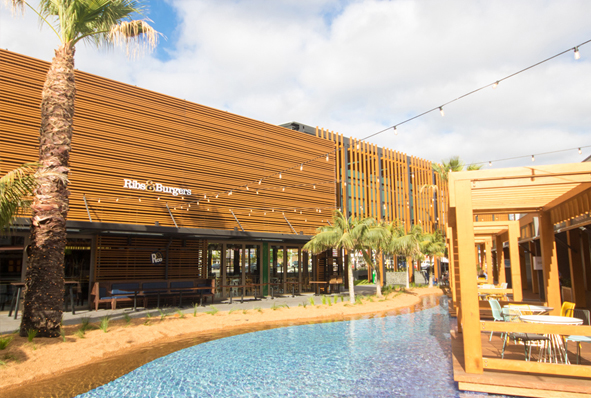

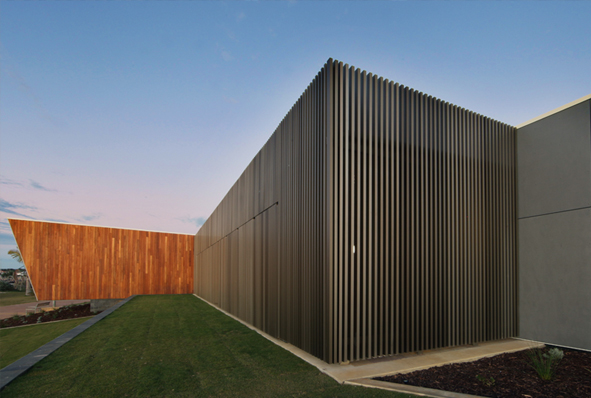

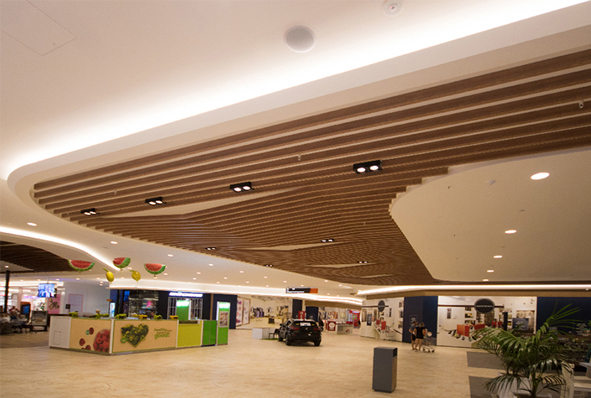

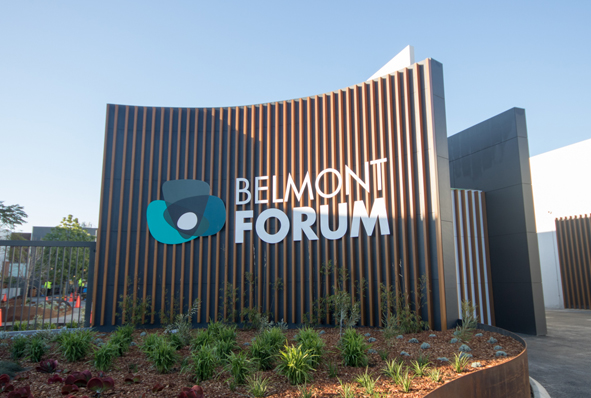

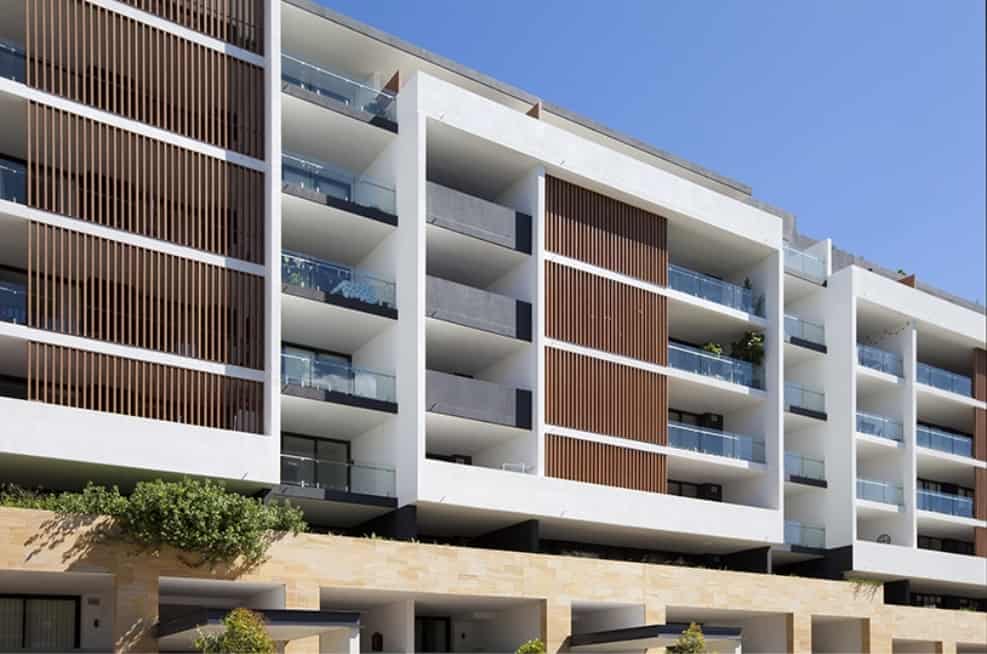

Applications

Contact our sales team for assistance on your project
