Grating Carpark Facade

Overview

The Arcadia Match® Grating System delivers a unique look and feel and is available in a range of profile angles and sizes. This solution provides very high levels of free area comparatively and has been widely used on multistorey carparks across Australia. This system uses extruded aluminium material which is swaged together making it tough and able to withstand the elements. A range of powdercoat and anodise finishes are available.

Code Blade size (mm) kg/m² Span (mm)
G 253 25 6.00 1.15
G 323 32 7.00 1.50
G 403 40 8.00 9.90
G 503 50 9.00 2.30
G 603 60 11.00 2.80
G 753 75 13.00 3.50
Code Blade size (mm) kg/m² Span (mm)
GC 253 25 9.00 1.00
GC 323 32 11.00 1.25
GC 403 40 13.00 1.70
GC 503 50 16.00 2.10
GC 603 60 19.00 2.50
GC 753 75 23.00 3.10
Code Blade size (mm) kg/m² Span (mm)
S 253-60 20 9.00 2.20
S 323-60 32 12.00 2.60
S 403-60 40 14.00 3.00
Code Blade size (mm) kg/m² Span (mm)
SC 253-60 20 12.00 1.90
SC 323-60 32 16.00 2.30
SC 403-60 40 18.00 2.70

Features

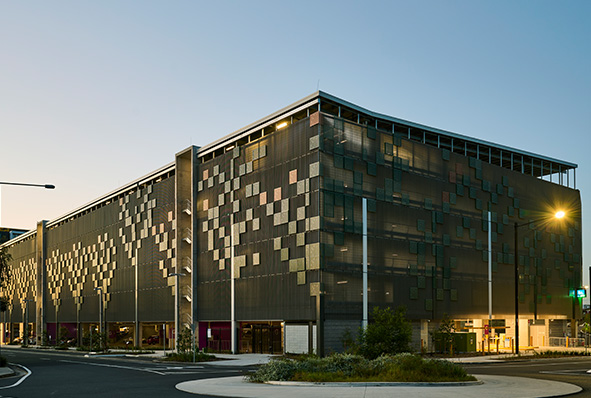

Designing a Captivating Carpark Facade

A carpark facade must serve more than just a pretty face, it must also keep out elements from the carpark, whilst providing safety, natural ventilation and shielding surrounding structures from light and noise pollution. These factors must be considered in the early stages of the design phase to ensure seamless delivery to exceed expectations of design and meet budget requirements.

Read more

Forming bespoke Patterns

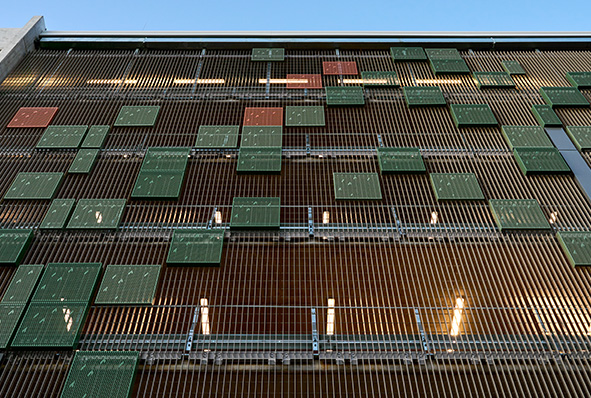

Match® grating systems have the unique ability to integrate 3 dimensional illusion based on variation of the blades. This can be coupled up as artwork or imagery to enhance public appeal for your project. Based on the orientation of the system it is able to vary and change the amount of privacy and natural light.

Getting the best Performance

Lorem ipsum dolor sit amet, consectetuer adipiscing elit. Aenean commodo ligula eget dolor. Aenean massa. Cum sociis natoque penatibus et magnis dis parturient montes, nascetur ridiculus mus.

Enhancing building designs

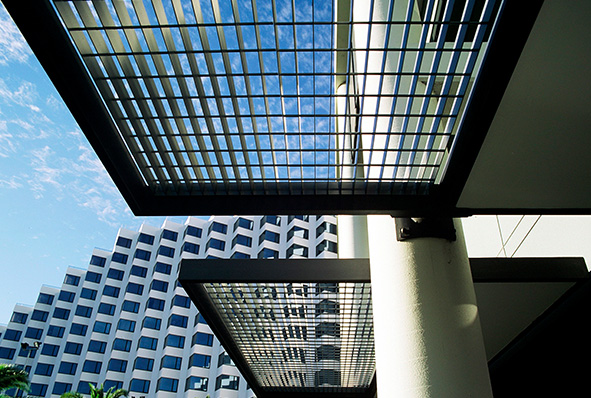

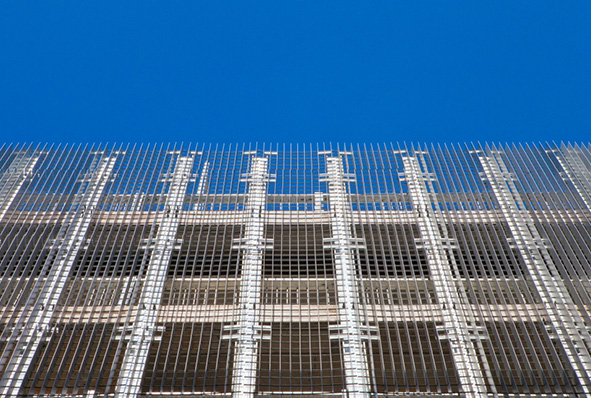

The Arcadia Match® Grating Panels can be integrated in to a buildingdesign to provide natural light and ventilation. The Arcadia Match®Grating Panel will also improve the appearance of an area and screen to provide a suitable privacy solution.When the Arcadia Match® Grating Panels are incorporated in to a building car park, plant room, gate, ceiling, wall/fencing or controlled access area the natural ventilation and light provided reduces the need for expensive continual artificial lighting and cooling.

Factors to consider

There are a couple of considerations you will need to keep in mind, when integrating the Match® Grating system into your project, these include location and terrain category, height of panel from grown level in meters, anticipated use, building façade and position of the Match® Grating system, fixing system and integration with suitable soffit. Additionally, consideration should be given to the flat bar spacing or free area, taking in to account the performance and security requirements. The Match® Grating Panels are suitable to withstand the buildings environmental conditions. Arcadia offer a team of experienced staff that are available to discuss the options available and assist with Match® Grating calculations or designing a complete solution ready to be incorporated architecturally. Calculation of sun blades and grating spans.
