Strand® Acoustic Roof Ventilator

Overview

With Arcadia’s Strand® Roof ventilator control solution it is not necessary to lose the benefits of natural ventilation due to noise pollution requirements. Strand® has been designed as an option to incorporate a high performing noise absorption material.

Throat (mm) 250
Width (mm) 770
Height (mm) 430
Width (kg/m) 16.5
EXHAUST BASED ON Δ T 5 ˚ K 6m H FDF 0.139
Throat (mm) 350
Width (mm) 950
Height (mm) 570
Width (kg/m) 21.5
EXHAUST BASED ON Δ T 5 ˚ K 6m H FDF 0.185
Throat (mm) 450
Width (mm) 1100
Height (mm) 630
Width (kg/m) 24.2
EXHAUST BASED ON Δ T 5 ˚ K 6m H FDF 0.226
Throat (mm) 550
Width (mm) 1350
Height (mm) 780
Width (kg/m) 29.7
EXHAUST BASED ON Δ T 5 ˚ K 6m H FDF 0.306
Throat (mm) 700
Width (mm) 1750
Height (mm) 940
Width (kg/m) 37.0
EXHAUST BASED ON Δ T 5 ˚ K 6m H FDF 0.390
Throat (mm) 600
Width (mm) 1600
Height (mm) 750
Width (kg/m) 39
EXHAUST BASED ON Δ T 5 ˚ K 6m H FDF 0.69
Throat (mm) 750
Width (mm) 1790
Height (mm) 950
Width (kg/m) 54
EXHAUST BASED ON Δ T 5 ˚ K 6m H FDF 0.69
Throat (mm) 1000
Width (mm) 2370
Height (mm) 1210
Width (kg/m) 66
EXHAUST BASED ON Δ T 5 ˚ K 6m H FDF 1.24
Throat (mm) 1200
Width (mm) 2970
Height (mm) 1370
Width (kg/m) 92
EXHAUST BASED ON Δ T 5 ˚ K 6m H FDF 1.52
Throat (mm) 1500
Width (mm) 3630
Height (mm) 1990
Width (kg/m) 145
EXHAUST BASED ON Δ T 5 ˚ K 6m H FDF 1.93
The Strand® MkII Acoustic roof ventilators incorporate strategically located noise absorption baffles to absorb high and low frequency production noise pollution and provide excellent high-level smoke and heat exhaust. This will promote air circulation throughout the building without disturbance to the neighbours.

Features

Importance of Acoustic Ventilation

In times of heightened health and safety concerns and requirements, it is important to ensure all noise generating equipping is provided with suitable containment and enclosures to apprehend the sound levels close to the source. Enclosures and containments can lead to stifling the required airflow around the noise generating equipment resulting in low productivity and high maintenance costs. Strand® acoustic products ensure that the correct airflow is maintained across the equipment and ensuring that the sound levels are acceptable for workplace health.

Combining Acoustic control and natural ventilation

With Arcadia’s Strand® Roof ventilators control solution it is not necessary to lose the benefits of natural ventilation due to noise pollution requirements. Strand® Roof ventilators has been designed as an option to incorporate a high performing noise absorption material. As air is exhausted through the ventilator the acoustic lining minimises noise transmission from the building. This also limits the transmission of noise entering the building. The acoustic lining has high flame retardant and chemical resistant properties. All Ventilators are designed to incorporate operable damper systems enabling open/close function to manage natural ventilation, noise control, heat, and integration with fire and smoke management systems.

Ideal for Industrial buildings

Facilities for heavy manufacturing, power generation, water pumping and desalination have taken advantage of this for many years by incorporating the Strand® roof ventilation with added acoustic attenuation.

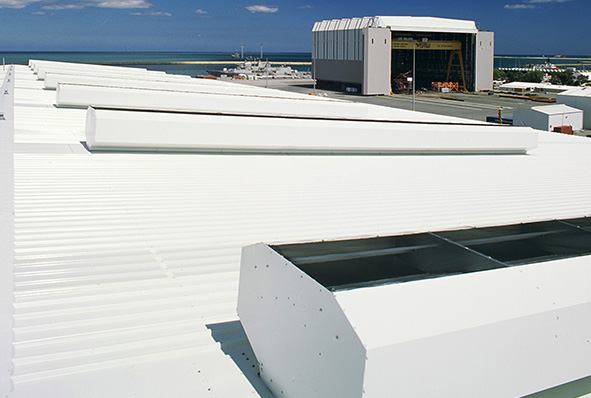

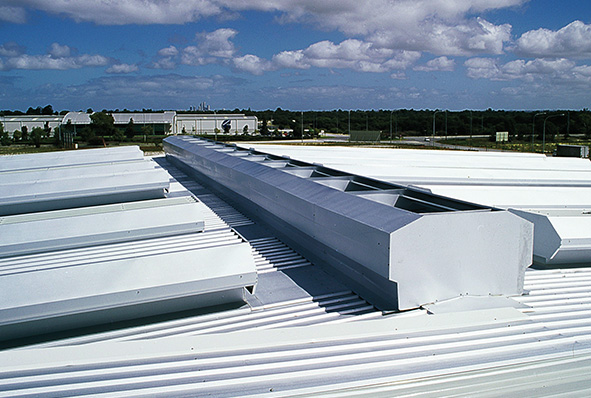

Applications

Contact our sales team for assistance on your project
