Carpark Batten Facades

Overview

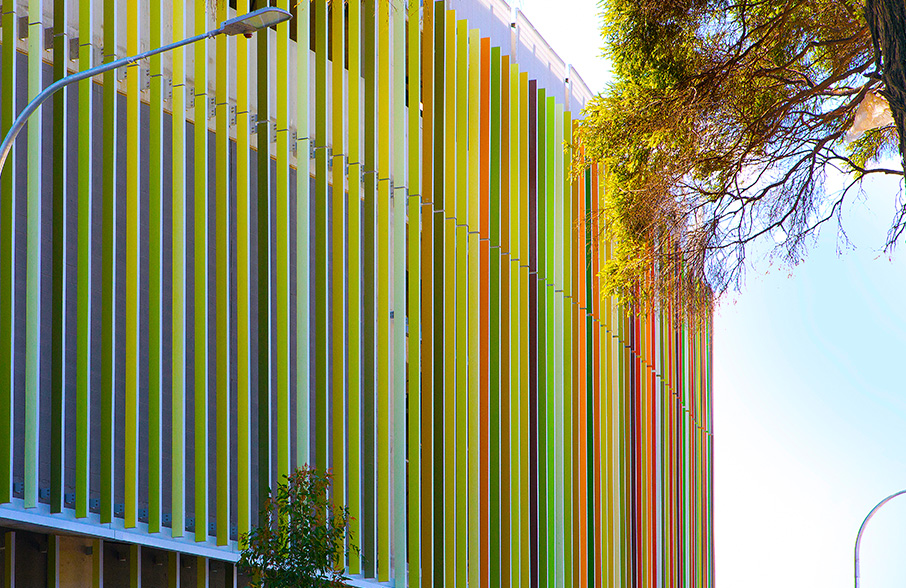

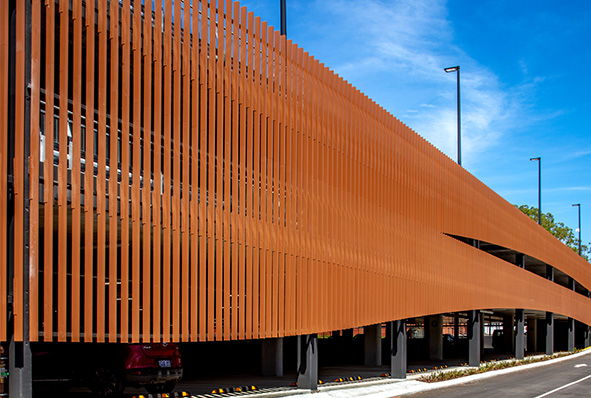

The Arcadia Zest® Batten Blade System has been integrated within many carpark facades across Australia. Clean lines, variable angle and pitch configurations deliver functional and flexible design, allowing designers the ability to create striking and standout looks to suit the surrounding environments

Thickness (mm) Depth (mm) Span (mm) Profile
40 80 3400
40 140 3400
40 200 3400
Thickness (mm) Depth (mm) Span (mm) Profile
45 75 3900
45 100 3650
45 135 3900
45 180 3700
45 235 3800
45 285 3850
45 335 38500
45 385 3800
Thickness (mm) Depth (mm) Span (mm) Profile
50 50 2800
50 100 3300
50 150 3900
50 200 4000
Thickness (mm) Depth (mm) Span (mm) Profile
135 100 4150

Span Clarification

  • Spans provided are based on generic wind pressure of 1 KPa. Please contact our team if you require project specific wind pressures or terrain categories
  • Spans provided are an indicative guide and are subject to the building location and applied wind speeds
  • Spans provided are based on average end fixity value and subject to final connection detail
  • Where products are also acting as a balustrade, span capacity will be reduced.
  • Spans are provided where the product is used standalone, where additional products are connected, span capacity may be reduced.
  • For detailed span information, contact Arcadia 1300 458 458 or email sales@arcadia.com.au

Features

Mix and Match Blades

Any of the Zest® Decorative Box battens include a range of differing blade depths and widths enabling designers to create feature within your Façade. This variation and range of profiles helps break up large facades with subtle protrusions that create texture through shadow, depth, colour and tone

Lighting up your Batten Facade

Zest® Box range can incorporate integrated LED lighting adding feature to your building ceiling, walls or facade. Incorporation of this enables designers to incorporate endless colour range at night to showcase your corporate colours or celebrate any special occasion. Lighting can be designed to provide face lighting, back lighting or side lighting to create different effects within your Façade design.

Add a splash of colour

Designers have the ability to select from an endless collection of colours and finishes to perfectly complement creative architectural designs - from Bright Powdercoat's to Granum® timber-looks to shiny metallic anodise finishes – with Arcadia’s Zest Decorative battens, the possibilities are limitless. Our broad colour collection is Australian Standard Compliant, sustainable, durable, and are guaranteed with a long-term warranty.

Applications

Contact our sales team for assistance on your project
