ZEST® Lightshelf

Overview

Illuminate your façade to create a building envelope that is adaptable in colour, distinctive and memorable, with Arcadia’s state-of-the-art system LED Facade Batten system. Our unique Zest® Lightshelf Batten system enables lighting to be integrated within the blade profile at front, side and rear, empowering lighting design to be taken to the next level

Thickness (mm) Depth (mm) Span (mm)
40 80 3400
40 140 3400
40 200 3400
Thickness (mm) Depth (mm) Span (mm)
45 75 3900
45 100 3650
45 180 3700
45 335 3850
Thickness (mm) Depth (mm) Span (mm)
50 50 2800
50 100 3300
50 150 3900
50 200 4000
50 250 4000
Thickness (mm) Depth (mm) Span (mm)
75 190 4500
75 240 4800
75 340 4150

Range

ZEST® 40 Lightshelf

Thickness (mm) Depth (mm) Span (mm) Profile
40 80 3400
40 140 3400
40 200 3400

ZEST® 45 Lightshelf

Thickness (mm) Depth (mm) Span (mm) Profile
45 75 3900
45 100 3650
45 180 3700
45 335 3850

ZEST® 50 Lightshelf

Thickness (mm) Depth (mm) Span (mm) Profile
50 50 2800
50 100 3300
50 150 3900
50 200 4000
50 250 4000

ZEST® 75 Lightshelf

Thickness (mm) Depth (mm) Span (mm) Profile
75 190 4500
75 240 4800
75 340 4150

Span Clarification

  • Spans provided are based on generic wind pressure of 1 KPa. Please contact our team if you require project specific wind pressures or terrain categories
  • Spans provided are an indicative guide and are subject to the building location and applied wind speeds
  • Spans provided are based on average end fixity value and subject to final connection detail
  • Where products are also acting as a balustrade, span capacity will be reduced.
  • Spans are provided where the product is used standalone, where additional products are connected, span capacity may be reduced.
  • For detailed span information, contact Arcadia 1300 458 458 or email sales@arcadia.com.au

Features

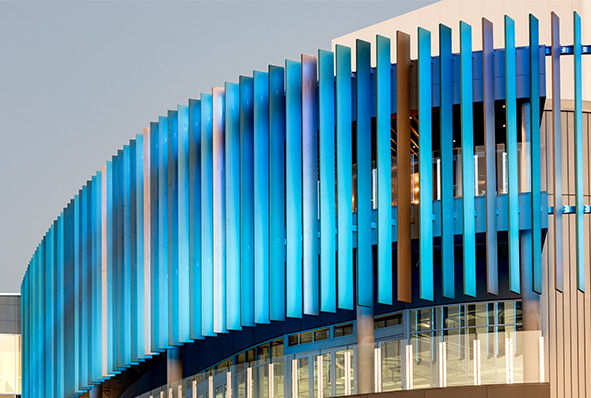

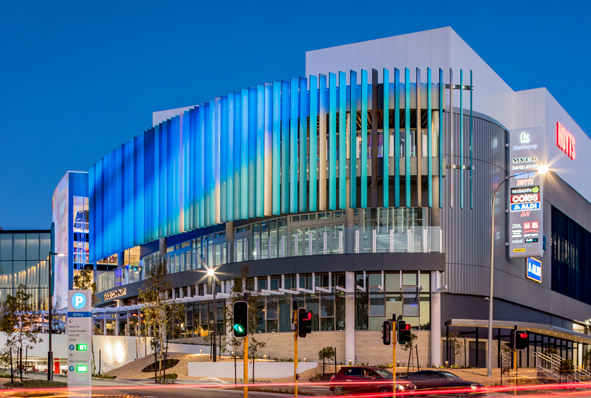

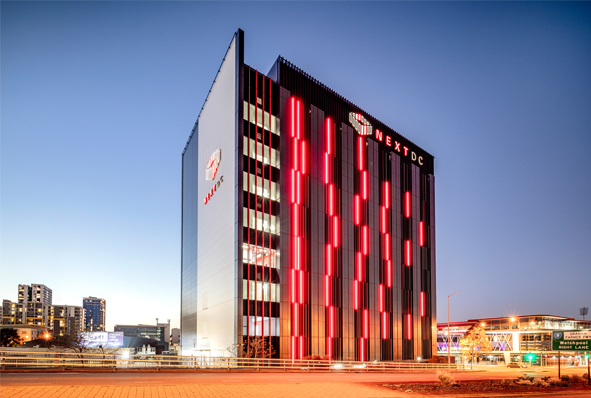

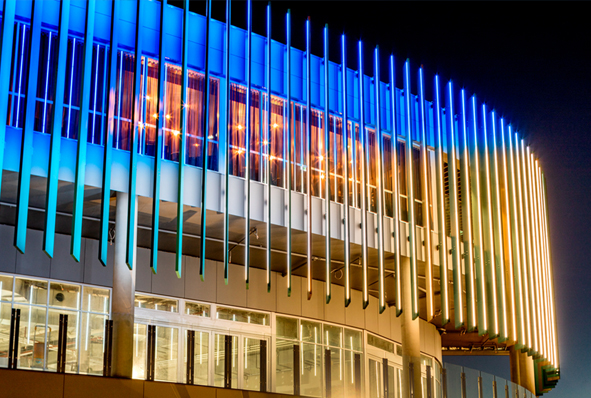

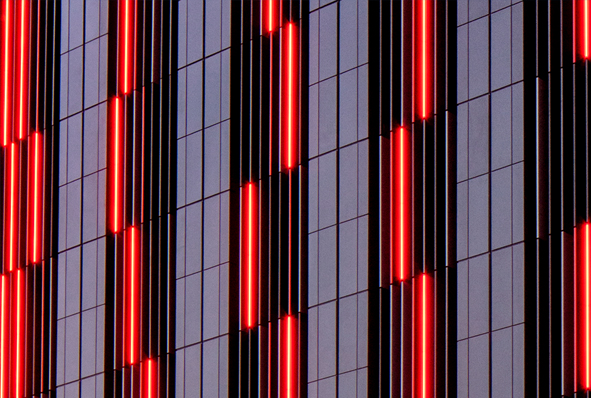

Lighting up your façade

Arcadia's Zest® Lightshelf range can incorporate integrated LED lighting adding feature to your building facade. Incorporation of this enables designers to incorporate endless colour range at night to showcase your corporate colours or celebrate any special occasion. Lighting can be designed to provide face lighting, back lighting, or side lighting to create different effects within your Façade design

Benefits of integrating LED Lighting

LED lighting built into a façade requires relatively little energy to generate the required luminance levels making it an effective and energy-efficient solution. Architectural lighting solutions place emphasis on the architecture, materials and the lighting effect sought after by the architect and building owner.

Learn more

Mix and Match Blades

The Zest® Lightshelf range includes a range of differing blade depths and widths enabling designers to create feature within your Façade. This variation and range of profiles helps break up large facades with subtle protrusions that create texture through shadow, depth, colour and tone.

Enhancing a buildings Performance and Sustainability

Enhance a building's visual impact by integrating Arcadia' Zest® Lightshelf sunblade systems. Our Zest® sunblade systems not only enhances a building's appearance but also enhances its performance with solar shading functionality and improves energy efficiency. This system is designed to provide optimal reduction of solar heat gain without compromising ambient light levels in the building.

Product Benefits

Arcadia's Zest® Lightshelf have multiple benefits, including large spans, lightweight, noncombustible, low maintenance, limitless profiles, vast range of Colours available, 100% Australian made and include Product warranty.

Applications
