Strand® HC Roof Ventilators

Overview

Strand® is a high performing roof ventilator system that provides a solution for fire & smoke exhaust for industrial and commercial buildings.This system has been engineered and tested to Australian Standards AS 2428.1 and is designed for all regions of Australia including cyclonic areas. The Strand® Range is used on ridge and slope building roofs, and can be incorporated with customised fire and smoke systems including failsafe operable dampers operated using a variety of pneumatic, electric fire rated control systems linked by a control box to Fire Indicator Panel systems.

Throat 600
Width 1600
Height 700
kg/m 35
kg/ END Assembly 43 ea
Throat 750
Width 1790
Height 900
kg/m 49
kg/ END Assembly 53 ea
Throat 900
Width 2370
Height 1160
kg/m 60
kg/ END Assembly 91 ea
Throat 1000
Width 2370
Height 1160
kg/m 60
kg/ END Assembly 91 ea
Throat 1200
Width 2970
Height 1320
kg/m 83
kg/ END Assembly 141 ea
Throat 1500
Width 3630
Height 1940
kg/m 130
kg/ END Assembly 250 ea
Throat 1800
Width 4260
Height 2180
kg/m 132
kg/ END Assembly 262 ea
Throat 2000
Width 4600
Height 2110
kg/m 146
kg/ END Assembly 276 ea
Throat 2400
Width 5520
Height 2540
kg/m 175
kg/ END Assembly 352 ea
Throat 3000
Width 7040
Height 3250
kg/m 255
kg/ END Assembly 181 ea
Throat 3600
Width 8280
Height 3800
kg/m 306
kg/ END Assembly 208 ea
Throat 4000
Width 9190
Height 4220
kg/m 340
kg/ END Assembly 221 ea
Throat 4500
Width 10120
Height 4620
kg/m 435
kg/ END Assembly 230 ea
The Strand® HC Series is the highest performing exhaust ridge and slope ventilator, with a 0.76 coefficient of discharge, which is lightweight and integrates simply into fire and smoke design providing effective Natural Exhaust Ventilation for heat, fumes and smoke purge to provide safe, comfortable, controlled working environments.

Features

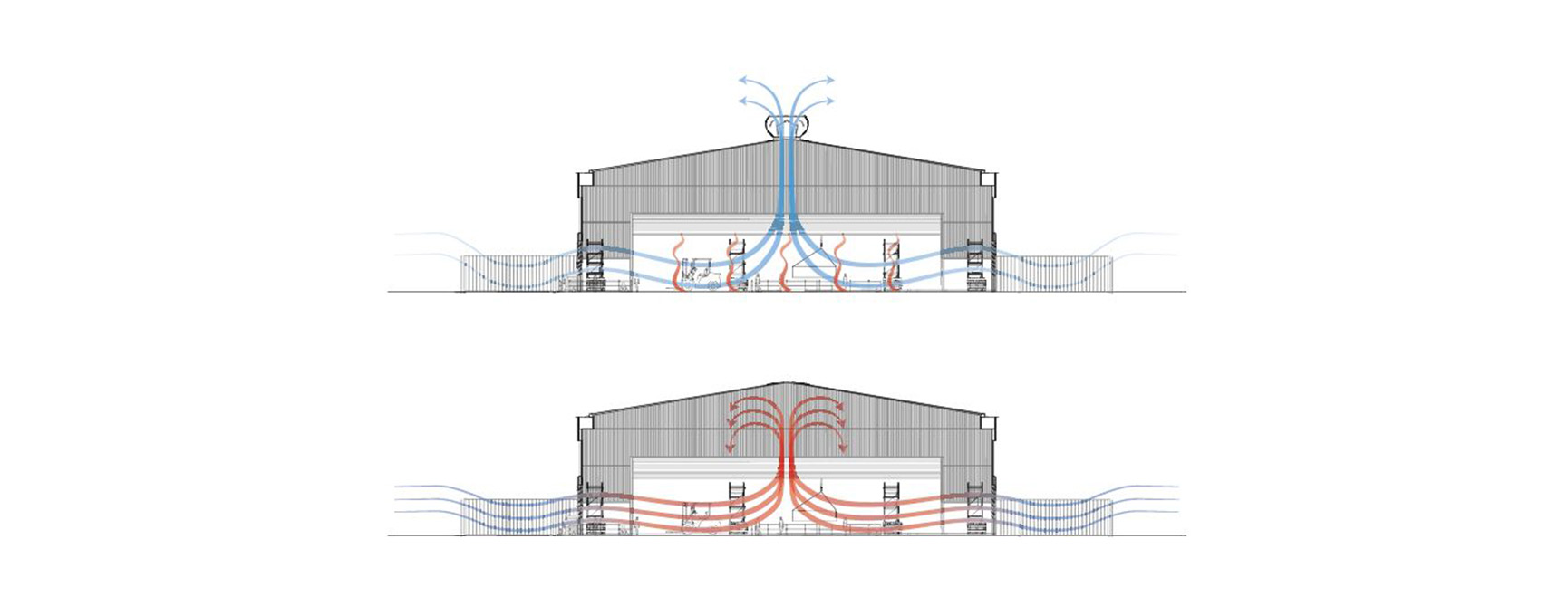

Incorporating an effective ventilation solution

The key to effective natural ventilation of a building or structure in having correctly designed, engineered and manufactured ventilation inlets and exhausts located and installed in the most appropriate position the provide the most effective movement of air. Selection of appropriate roof ventilators will ensure that the building has the correct ventilation

Reduce heat temperature internally

A well-constructed and ventilated structure may reduce the accumulation of trapped heat, resulting in more effective temperature management and a more convenient and hygienic workplace.

Condensation and Moisture Removal

Some workplaces emit contaminants that obstruct the free flow of clean air in commercial buildings, industrial warehouses and factories. To eliminate moisture and condensation build-up and replace it with clean and fresh air, a natural ventilation system would be preferable. This also helps to maintain the environment clean for all residents by reducing corrosion in buildings and infrastructure

Using Tested and Engineered Performance Ventilation

When using ventilation for your building solutions, a definable and guaranteed outcome can only be achieved where the products are performance tested and certified. All products must be laboratory tested and certified to AS4740 and AS2428 for rain, wind, fire and coefficient discharge.

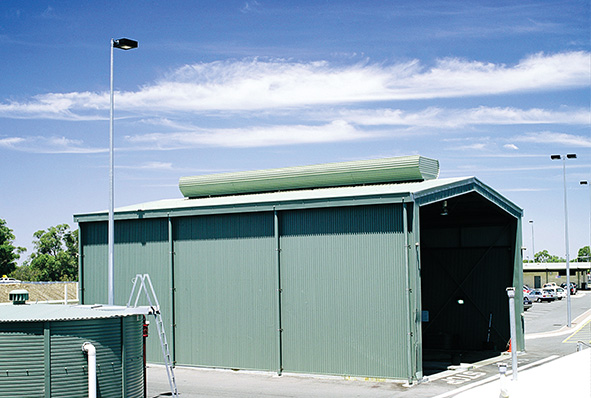

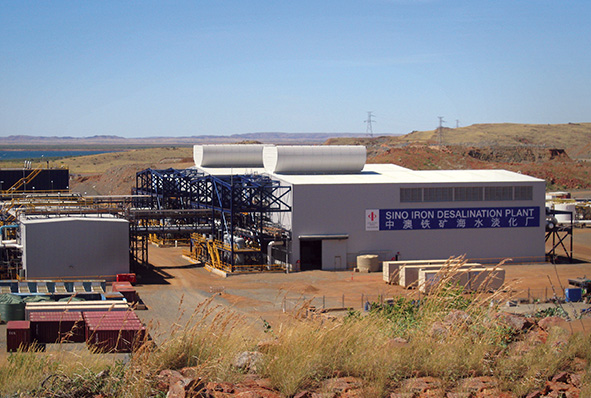

Applications

Contact our sales team for assistance on your project
