ZEST® Bullet

Overview

Zest® Bullet blades are a unique profile incorporating a square back, and an elliptical front. This Unique shaped profile provides designers a different look and feel internally and externally of a building and has excellent spanning capacity. This system can be interchanged with the Zest Box range and are seamlessly connected to building facades, walls, windows or steel structure and can be set vertically or horizontally at any chosen pitch or angle. This device is widely used as part of a building's solar shading system.

Thickness (mm) Depth (mm) Span (mm) Profile
45 167 3450
45 267 3550
45 317 3600
45 417 3600
45 467 3650
45 617 3700
Thickness (mm) Depth (mm) Span (mm) Profile
55 235 4000
55 295 4150
55 385 4150
55 535 4200
55 685 4200
Thickness (mm) Depth (mm) Span (mm) Profile
75 320 4450
75 470 5250
75 520 5300
75 670 5450

Range

Zest® Bullet 45

Thickness (mm) Depth (mm) Span (mm) Profile DOWNLOAD PRODUCT DATA
45 167 3450
45 267 3550
45 317 3600
45 417 3600
45 467 3650
45 617 3700

Zest® Bullet 55

Thickness (mm) Depth (mm) Span (mm) Profile DOWNLOAD PRODUCT DATA
55 235 4000
55 295 4150
55 385 4150
55 535 4200
55 685 4200

Zest® Bullet 75

Thickness (mm) Depth (mm) Span (mm) Profile DOWNLOAD PRODUCT DATA
75 320 4450
75 470 5250
75 520 5300
75 670 5450

Span Clarification

  • Spans provided are based on generic wind pressure of 1 KPa. Please contact our team if you require project specific wind pressures or terrain categories
  • Spans provided are an indicative guide and are subject to the building location and applied wind speeds
  • Spans provided are based on average end fixity value and subject to final connection detail
  • Where products are also acting as a balustrade, span capacity will be reduced.
  • Spans are provided where the product is used standalone, where additional products are connected, span capacity may be reduced.
  • For detailed span information, contact Arcadia 1300 458 458 or email sales@arcadia.com.au

Features

Mix and Match Blades

Any of the Zest® Bullet profiles can be combined to create variation and texture within your Façade sunblades. This enables designers to break up larger facades with subtle protrusions that create texture through shadow, depth, colour and tone and can even be designed to create artwork imagery.

Enhancing a building facades

Enhance a building's visual impact with Arcadia's architectural façade system. Our Zest® Bullet sunblades not only enhance a building's appearance but also enhance its performance with solar shading functionality and improves energy efficiency. This system is designed to provide optimal reduction of solar heat gain without compromising ambient light levels in the building.

Product Benefits

Arcadia's Zest® Bullet blades have multiple benefits, these include: light weight, noncombustible, termite resistant, low maintenance, vast range of Colours available, 100% Australian made, limitless profiles and include Product warranty.

Add a splash of colour

Designers have the ability to select from an endless collection of colours and finishes to perfectly complement creative architectural designs - from Granum® timber-look powder coat, anodise colours and finishes, the possibilities are limitless. Our broad colour collection is Australian Standard Compliant, sustainable, durable, and are guaranteed with a long-term warranty.

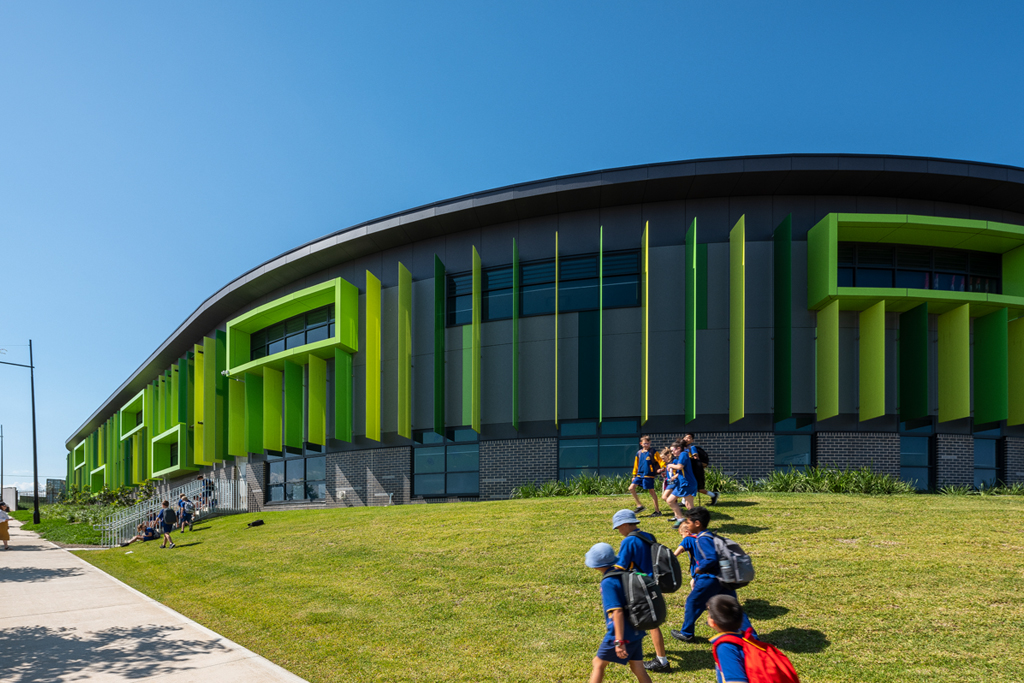

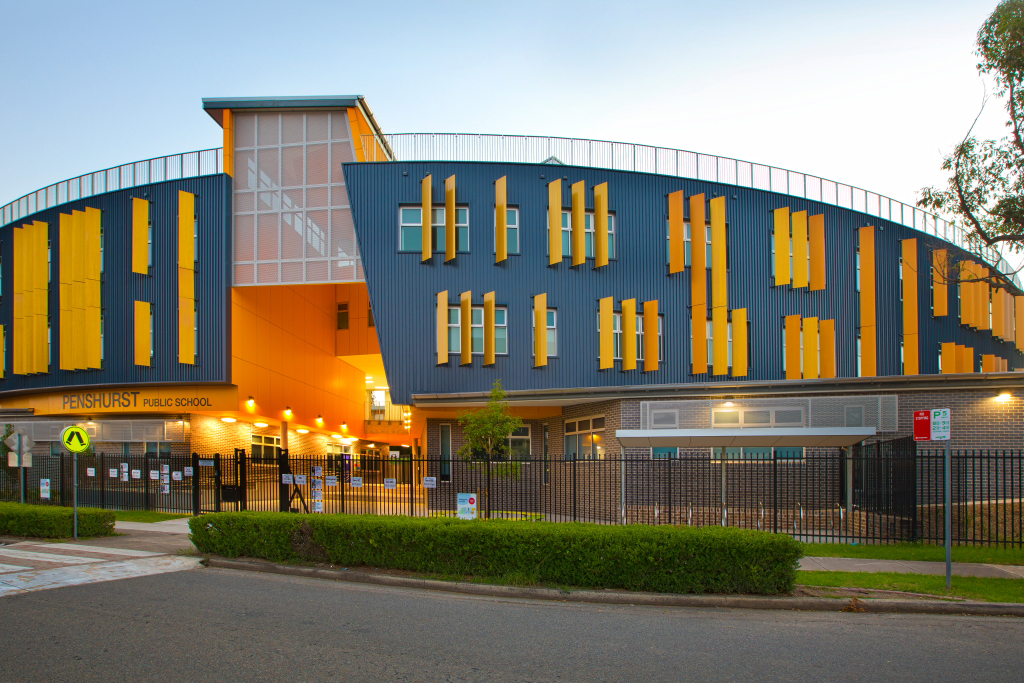

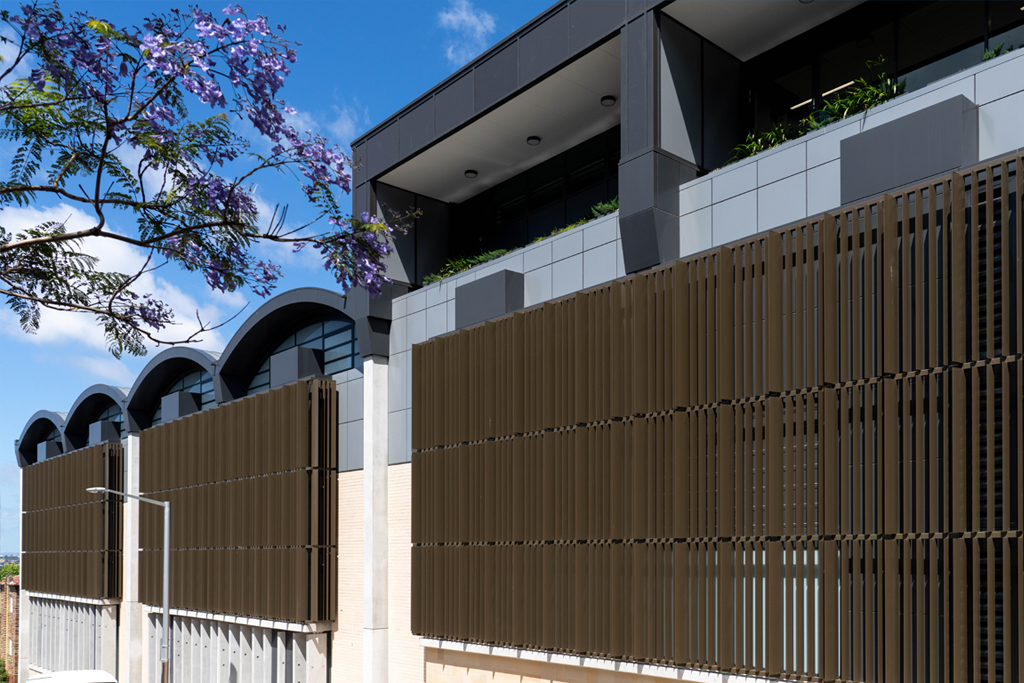

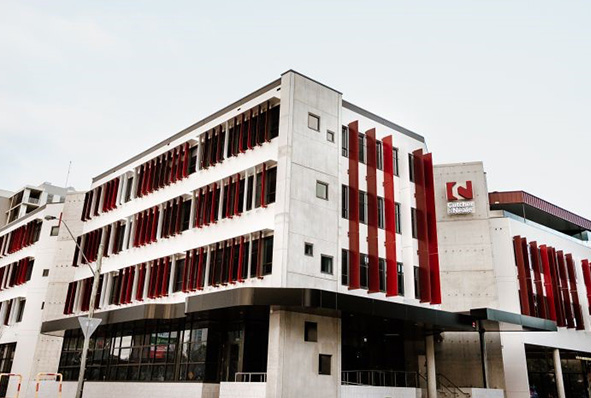

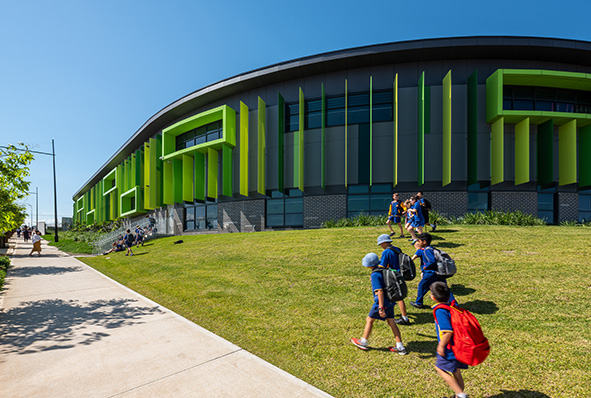

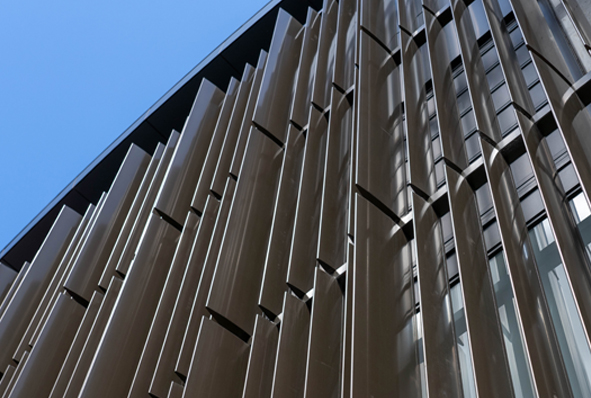

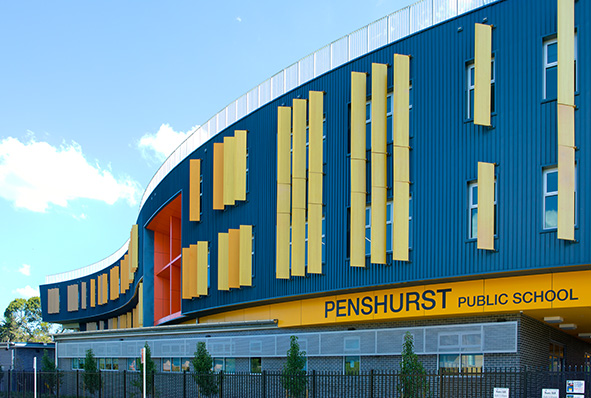

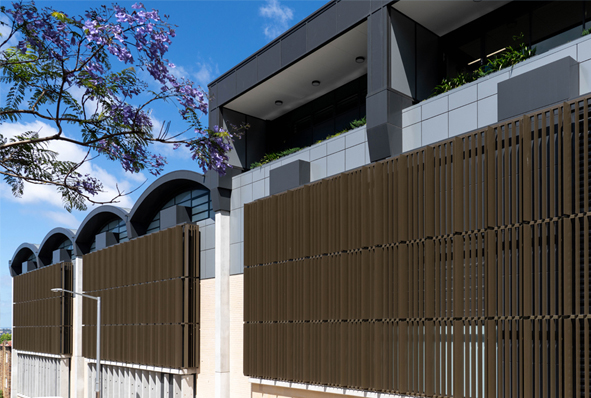

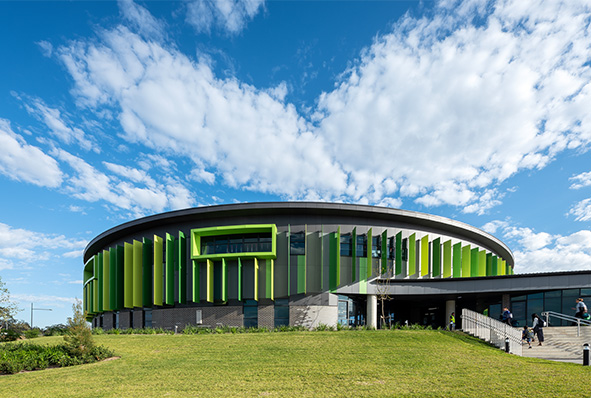

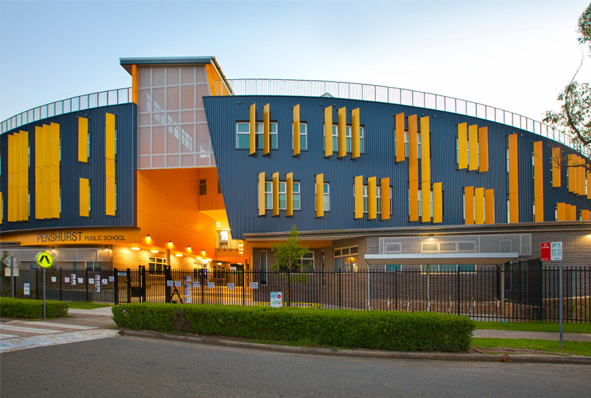

Applications

Contact our sales team for assistance on your project
