ZEST® Ellipsoid

Overview

Zest® Ellipsoid series is a sleek elliptical louvre blade profile and is manufactured from extruded aluminium. This sunshade louvre blade enables optimum solar shading properties and can be manufactured as an operable louvre to provide greater flexibility with solar shading as well as being interfaced with a building management system. It has been carefully designed to provide large spans, significantly reducing immediate support required and is available in a broad range of louvre profile sizes.

Thickness (mm) Depth (mm) Span (mm) Profile
14 60 1150
Thickness (mm) Depth (mm) Span (mm) Profile
16 90 1350
Thickness (mm) Depth (mm) Span (mm) Profile
22 125 1750
Thickness (mm) Depth (mm) Span (mm) Profile
29 150 2100
Thickness (mm) Depth (mm) Span (mm) Profile
33 200 2500
Thickness (mm) Depth (mm) Span (mm) Profile
50 300 3500
Thickness (mm) Depth (mm) Span (mm) Profile
55 430 3750
Thickness (mm) Depth (mm) Span (mm) Profile
75 600 4700

Range

Zest® E60

Thickness (mm) Depth (mm) Span (mm) Profile DOWNLOAD PRODUCT DATA
14 60 1150

Zest® E90

Thickness (mm) Depth (mm) Span (mm) Profile
16 90 1350

Zest® E125

Thickness (mm) Depth (mm) Span (mm) Profile
22 125 1750

Zest® E150

Thickness (mm) Depth (mm) Span (mm) Profile
29 150 2100

Zest® E200

Thickness (mm) Depth (mm) Span (mm) Profile
33 200 2500

Zest® E300

Thickness (mm) Depth (mm) Span (mm) Profile
50 300 3500

Zest® E430

Thickness (mm) Depth (mm) Span (mm) Profile
55 430 3750

Zest® E600

Thickness (mm) Depth (mm) Span (mm) Profile
75 600 4700

Span Clarification

  • Spans provided are based on generic wind pressure of 1 KPa. Please contact our team if you require project specific wind pressures or terrain categories
  • Spans provided are an indicative guide and are subject to the building location and applied wind speeds
  • Spans provided are based on average end fixity value and subject to final connection detail
  • Where products are also acting as a balustrade, span capacity will be reduced.
  • Spans are provided where the product is used standalone, where additional products are connected, span capacity may be reduced.
  • For detailed span information, contact Arcadia 1300 458 458 or email sales@arcadia.com.au

Features

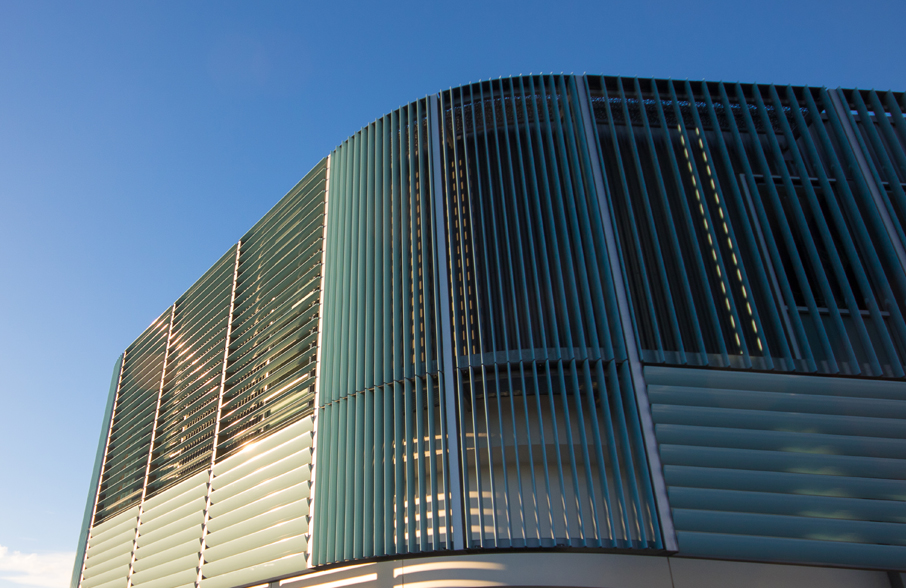

Enhancing a building facades

Enhance a building's visual impact by integrating Arcadia' Zest® Ellipsoid sunblade systems. Our Zest® sunblade systems not only enhances a building's appearance but also enhances its performance with solar shading functionality and improves energy efficiency. This system is designed to provide optimal reduction of solar heat gain without compromising ambient light levels in the building.

Product Benefits

Arcadia's Zest Ellipsoid have multiple benefits, these include: light weight, non-combustible, termite resistant, low maintenance, vast range of Colours available, 100% Australian made, limitless profiles and include Product warranty.

Learn more

Sustainable Building Designs

A higher green star ratings provide a high class building with better returnable for a building owners and developers. Majority of tenants want to lease a building which is sustainably designed which results in greater yields for building owners. Arcadia Zest® Sunblades make a great contribution to achieving sustainability, which often includes, an operable system to allow inlet light for heating and block unwanted heat loads at peak periods during harsh weather climates.

Add a splash of colour

Designers have the ability to select from an endless collection of colours and finishes to perfectly complement creative architectural designs - from Granum® timber-look powder coat, anodise colours and finishes, the possibilities are limitless. Our broad colour collection is Australian Standard Compliant, sustainable, durable, and are guaranteed with a long-term warranty.

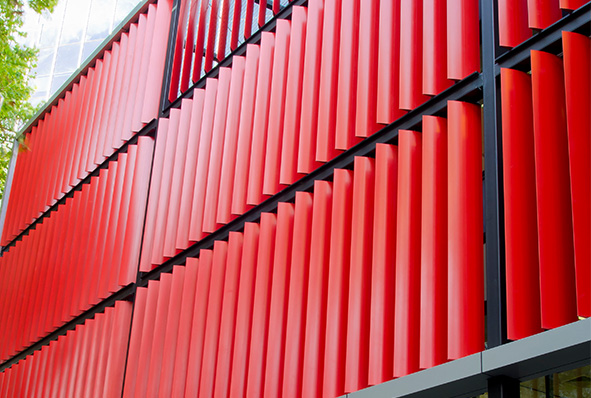

Applications
