Muse® Standard

Overview

Arcadia has established an extensive range of standard perforated patterns, including squares, rectangles, circular holes, slots, hexagons, and diamonds, providing a broad range of Free areas and light inlet intensity levels to suit your project design. For design flexibility, Muse® perforated aluminium sheets can be fixed to structural steel, aluminium frames or masonry structures to suit your design requirements and are engineered and compliant to Australian Standards AS1170 and AS1530.

Muse® Standard

CodeRO90-3509
Hole size3.5
Pitch9.0
Free Area12
CodeRO90-0510
Hole size5.0
Pitch10.0
Free Area20
CodeRO90-0614
Hole size6.0
Pitch14.5
Free Area14
CodeRO90-0814
Hole size8.0
Pitch14.0
Free Area24
CodeRO90-1014
Hole size10.0
Pitch14.5
Free Area38
CodeRO90-1025
Hole size10.0
Pitch25.0
Free Area25
CodeRO90-1225
Hole size12.0
Pitch25.0
Free Area18
CodeRO90-1933
Hole size19.0
Pitch33.0
Free Area26
CodeRO90-3050
Hole size30.0
Pitch50.0
Free Area28
CodeRO90-5075
Hole size50.0
Pitch75.0
Free Area35
CodeRO60-2436
Hole size2.41
Pitch3.66
Free Area40
CodeRO60-3255
Hole size3.20
Pitch5.59
Free Area30
CodeRO60-3261
Hole size3.20
Pitch6.10
Free Area25
CodeRO60-3955
Hole size3.97
Pitch5.59
Free Area46
CodeRO60-0406
Hole size4.25
Pitch6.35
Free Area40
CodeRO60-0407
Hole size4.25
Pitch7.40
Free Area30
CodeRO60-4763
Hole size4.76
Pitch6.35
Free Area56
CodeRO60-4779
Hole size4.76
Pitch7.92
Free Area32
CodeRO60-0511
Hole size5.80
Pitch11.25
Free Area23
CodeRO60-0625
Hole size6.0
Pitch25.0
Free Area9
CodeRO60-6385
Hole size6.35
Pitch8.50
Free Area51
CodeRO60-6395
Hole size6.35
Pitch9.55
Free Area40
CodeRO60-6312
Hole size6.35
Pitch12.70
Free Area23
CodeRO60-7995
Hole size7.94
Pitch9.55
Free Area62
CodeRO60-0811
Hole size8.0
Pitch11.10
Free Area47
CodeRO60-0825
Hole size8.0
Pitch25.0
Free Area16
CodeRO60-0812
Hole size8.00
Pitch12.70
Free Area36
CodeRO60-9512
Hole size9.53
Pitch12.70
Free Area51
CodeRO60-9514
Hole size9.53
Pitch14.27
Free Area40
CodeRO60-9516
Hole size9.53
Pitch16.0
Free Area32
CodeRO60-1025
Hole size10.0
Pitch25.0
Free Area25
CodeRO60-1225
Hole size12.0
Pitch25.0
Free Area36
CodeRO60-1215
Hole size12.70
Pitch15.50
Free Area60
CodeRO60-1217
Hole size12.70
Pitch17.27
Free Area52
CodeRO60-1936
Hole size19.0
Pitch26.0
Free Area25
CodeRO60-1925
Hole size19.05
Pitch25.40
Free Area55
CodeRO60-1930
Hole size19.05
Pitch30.0
Free Area38
CodeRO60-2530
Hole size25.40
Pitch30.0
Free Area63
CodeRO60-3038
Hole size30.0
Pitch38.50
Free Area55
CodeRO60-3045
Hole size30.0
Pitch45.0
Free Area40
CodeRO60-5065
Hole size50.0
Pitch65.0
Free Area54
CodeRO60-5075
Hole size50.0
Pitch75.0
Free Area40
CodeRO45-3509
Hole size3.50
Pitch9.0
Free Area25
CodeRO45-0510
Hole size5.0
Pitch10.0
Free Area39
CodeRO45-0625
Hole size6.0
Pitch25.0
Free Area9
CodeRO45-0825
Hole size8.0
Pitch25.0
Free Area16
CodeRO45-1025
Hole size10.0
Pitch25.0
Free Area25
CodeRO45-1010
Hole size10.0, 6.0
Pitch10.25
Free Area51
CodeRO45-1225
Hole size12.0
Pitch25.0
Free Area36
CodeRO45-1920
Hole size19.0, 12.0
Pitch20.0
Free Area50
CodeRO45-3019
Hole size30.0, 19.0
Pitch32.0
Free Area48
CodeRO45-3060
Hole size30.0
Pitch60.0
Free Area39
CodeRO45-5050
Hole size50.0, 30.0
Pitch50.0
Free Area50
CodeROR-0614
Hole size10.0, 6.0
Pitch14.5
Free Area22
CodeROR-1014
Hole size10.0
Pitch14.5
Free Area25
CodeROR-1025
Hole size19.0, 10.0
Pitch25.0
Free Area26
CodeROR-1925
Hole size19.0
Pitch25.0
Free Area30
CodeROR-0830
Hole size19.0, 12.0, 8.0
Pitch30.0
Free Area32
CodeROR-1222
Hole size19.0, 12.7
Pitch22.5
Free Area40
CodeROR-0825
Hole size20.0, 15.0, 12.0, 8.0
Pitch25.0
Free Area22
CodeROR-0735
Hole size30.0, 20.0, 15.0, 7.0
Pitch35
Free Area24
CodeROR-1037
Hole size30.0, 25.0, 20.0, 15.0, 10.0
Pitch37.0
Free Area25
CodeROR-1535
Hole size30.0, 15.0
Pitch35.0
Free Area30
CodeROR-1935
Hole size30.0, 19.0
Pitch35.0
Free Area40
CodeROR-1537
Hole size32.0, 25.0, 15.0
Pitch37.0
Free Area50
CodeROR-2537
Hole size32.0, 38.0, 25.0
Pitch37.0
Free Area56
CodeROR-1560
Hole size50.0, 40.0, 33.0, 25.0, 15.0
Pitch60.0
Free Area25
CodeROR-2558
Hole size50.0, 25.0
Pitch58.0
Free Area31
CodeROR-3060
Hole size70.0, 50.0, 30.0
Pitch60.0
Free Area46
CodeHX60-9511
Hole size9.50
Pitch11.90
Free Area64
CodeHX60-2332
Hole size23.81
Pitch32.0
Free Area44
CodeHX60-2833
Hole size28.0
Pitch33.0
Free Area72
CodeROR-0614
Hole size10.0, 6.0
Pitch14.5
Free Area22
CodeROR-1014
Hole size10.0
Pitch14.5
Free Area25
CodeROR-1025
Hole size19.0, 10.0
Pitch25
Free Area26
CodeROR-1925
Hole size19.0
Pitch25.0
Free Area30
CodeROR-0830
Hole size19.0, 12.0, 8.0
Pitch30.0
Free Area32
CodeROR-1222
Hole size19.0 & 12.7
Pitch22.5
Free Area40
CodeROR-0825
Hole size20.0, 15.0, 12.0 & 8.0
Pitch25.0
Free Area22
CodeROR-0735
Hole size30.0, 20.0, 15.0 & 7.0
Pitch35
Free Area24
CodeROR-1037
Hole size30.0, 25.0, 20.0, 15.0 & 10.0
Pitch37.0
Free Area25
CodeROR-1535
Hole size30.0 & 15.0
Pitch35.0
Free Area30
CodeROR-1935
Hole size30.0 & 19.0
Pitch35.0
Free Area40
CodeROR-1537
Hole size32.0, 25.0 & 15.0
Pitch37.0
Free Area50
CodeROR-2537
Hole size32.0, 28.0 & 25.0
Pitch37.0
Free Area56
CodeROR-1560
Hole size50.0, 40.0, 33.0, 25.0 & 15.0
Pitch60.0
Free Area25
CodeROR-2558
Hole size50.0 & 25.0
Pitch58.0
Free Area31
CodeROR-3060
Hole size70.0, 50.0 & 30.0
Pitch60.0
Free Area46
CodeSL90-1936
Hole size19.0 x 3.0
Pitch6.0
Free Area44
CodeSL90-2551
Hole size25.0 x 5.0
Pitch10.0
Free Area41
CodeSL90-2558
Hole size25.0 x 5.1
Pitch8.50
Free Area50
CodeSL90-2563
Hole size25.4 x 6.3
Pitch4.76
Free Area43
CodeSL90-5017
Hole size50.0 x 10.0
Pitch17.0
Free Area50
CodeSL90-5012
Hole size50.0 x 10.0
Pitch20.0
Free Area40
CodeSL45-3025
Hole size30.0 x 7.0
Pitch25.0
Free Area40
CodeSL30-1935
Hole size19.0 x 3.0
Pitch5.0
Free Area42
CodeSL30-1936
Hole size19.0 x 3.0
Pitch6.0
Free Area43
CodeSL30-2558
Hole size25.0 x 5.0
Pitch8.0
Free Area55
CodeSL30-2551
Hole size25.0 x 5.0
Pitch10.0
Free Area39
CodeSL30-2530
Hole size25.4 x 6.3
Pitch30.0 x 11.0
Free Area38
CodeSLR-2545
Hole size25.0 x 5.0
Pitch45.0
Free Area20
CodeSLR-2861
Hole size28.0 x 8.0 & 18.0 x 5.0
Pitch61.0
Free Area37
CodeSLR-4010
Hole size40.0 x 10.0
Pitch10.0 - 15.0
Free Area50
CodeSLR-5010
Hole size50.0 x 10.0
Pitch10.0 - 20.0
Free Area36
CodeSQ90-4769
Hole size4.76
Pitch6.99
Free Area47
CodeSQ90-6376
Hole size6.35
Pitch7.62
Free Area74
CodeSQ90-7912
Hole size7.90
Pitch12.50
Free Area40
CodeSQ90-7911
Hole size7.94
Pitch11.43
Free Area48
CodeSQ90-1012
Hole size10.0
Pitch12.0
Free Area70
CodeSQ90-1014
Hole size10.0
Pitch14.0
Free Area49
CodeSQ90-1016
Hole size10.0
Pitch16.0
Free Area39
CodeSQ90-3042
Hole size30.0
Pitch42.0
Free Area51
CodeSQ90-5065
Hole size50.0
Pitch65.0
Free Area57
CodeSQ60-6010
Hole size6.0
Pitch10.0
Free Area36
CodeSQ60-1014
Hole size10.0
Pitch14.0
Free Area50
CodeSQR-1525
Hole size15.0
Pitch25.0
Free Area24
CodeSQR-2035
Hole size20.0 & 7.0
Pitch35.0
Free Area24
CodeSQR-2045
Hole size20.0
Pitch45.0
Free Area48
CodeRE90-2510
Hole size25.0 x 5.0
Pitch10.0
Free Area42
CodeRE90-3020
Hole size30.0 x 10.0 & 10.0 x 10.0
Pitch20.0
Free Area30
CodeRE90-3112
Hole size31.0 x 6.4
Pitch12.0
Free Area45
CodeRE90-7030
Hole size70.0 x 15.0
Pitch30.0
Free Area41
CodeRE30-2510
Hole size25.0 x 5.0
Pitch10.0
Free Area42
CodeRE30-3112
Hole size31.0 x 6.4
Pitch12.0
Free Area45
CodeRE30-7030
Hole size70.0 x 15.0
Pitch30.0
Free Area41
CodeRE45-3010
Hole size0 30.0 x 5.0
Pitch10.0
Free Area43
CodeRE45-5017
Hole size50.0 x 10.0
Pitch17.50
Free Area50
CodeTR60-1524
Hole size15.0
Pitch24.0
Free Area44
CodeTR60-3010
Hole size30.0
Pitch10.0
Free Area43
CodeTR30-2045
Hole size20.0
Pitch45.0
Free Area30
CodeHX60-9511
Hole size9.50
Pitch11.90
Free Area64
CodeHX60-2332
Hole size23.81
Pitch32.0
Free Area44
CodeHX60-2833
Hole size28.0
Pitch33.0
Free Area72
CodeEL30-2014
Hole size20.0 x 9.0
Pitch14
Free Area60
CodeEL30-2016
Hole size20 x 9.0
Pitch16.0
Free Area50
CodeEL30-4028
Hole size40.0 x 18.0
Pitch28.0
Free Area60
CodeEL30-4033
Hole size40.0 x 18.0
Pitch33.0
Free Area50

Profile Designs

Features

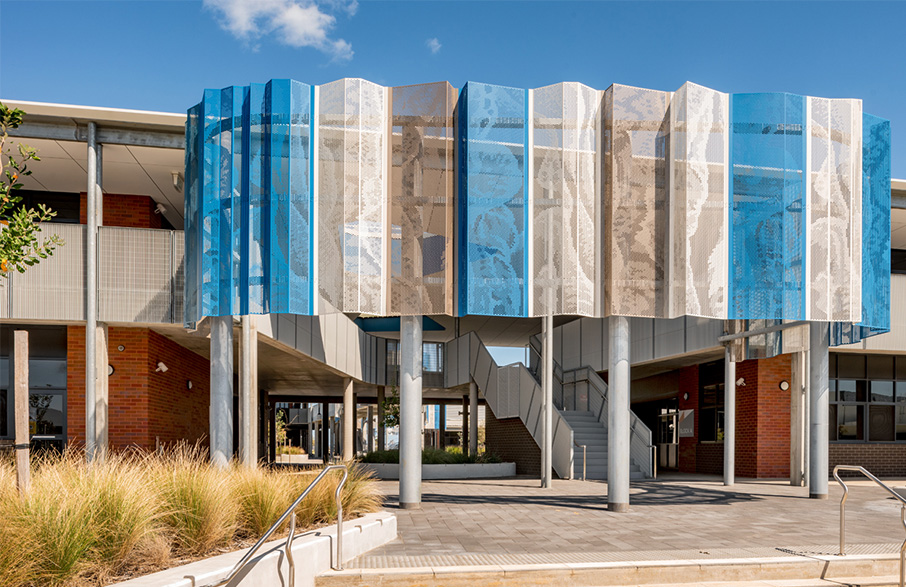

Delivering Versatile Perforated Facade Solutions

Arcadia is leading the way with innovative, smart, and efficient solutions for integrating Aluminium Perforated metal within building Facades. With modern architecture incorporating customised architectural designs, there are many challenges that need to be met and achieved when integrating Perforated Facades, these include Combustibility Compliance, Thermal Movement, Understanding Wind & Acoustics, Compatibility & Materials isolation, and fixing methods that can withstand the harsh nature of the climate. If overlooked at early design stages, these challenges can result in non-conforming Facades and costly remedial works. Arcadias in-house Engineering and design expertise are available for architects, Engineers, and designers to lean on for assistance at early design and concept stages of a project to ensure your Perforated Façade design is built right first time. Arcadias Muse Perforated Façade system is Tested and Compliant to AS1530 for combustibility and AS1170 for Structural compliance.

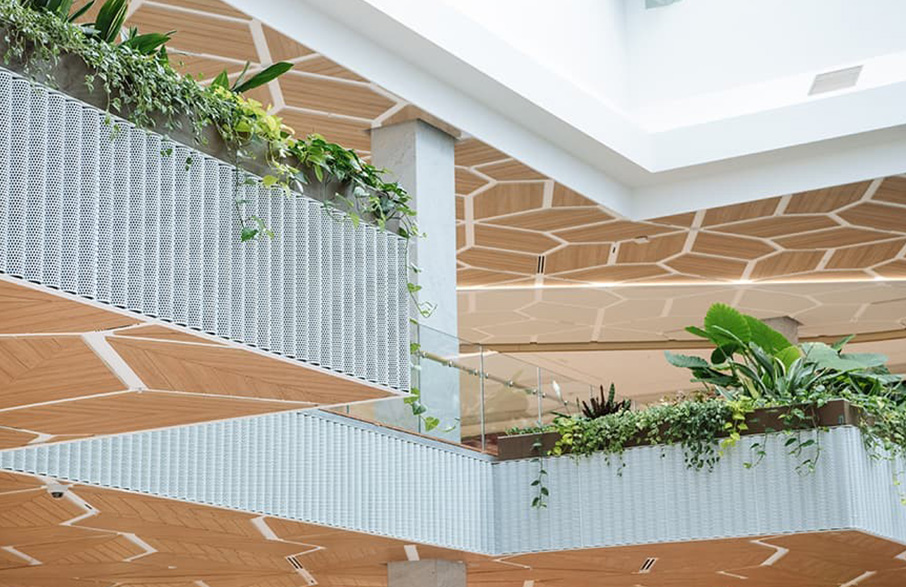

Multifunctional Perforated Solutions

Arcadia Muse ® Perforated Metal is most commonly manufactured from Aluminium and can be utilised for privacy screening, solar shading, Façade Feature as well as providing ventilation. In addition to all the practical advantages of the Muse ® Perforated Metal Panelling, the panels create strong aesthetic possibilities using colour and texture to create a design feature that is easily integrated into a building façade. Natural lighting and airflow permeate through the panel, of which both factors are considered beneficial. The Muse ® Perforated Metal Panelling delivers a security, privacy screening, solar shading, natural ventilation, and weather shielding solution which collectively will reduce the carbon footprint of the building.

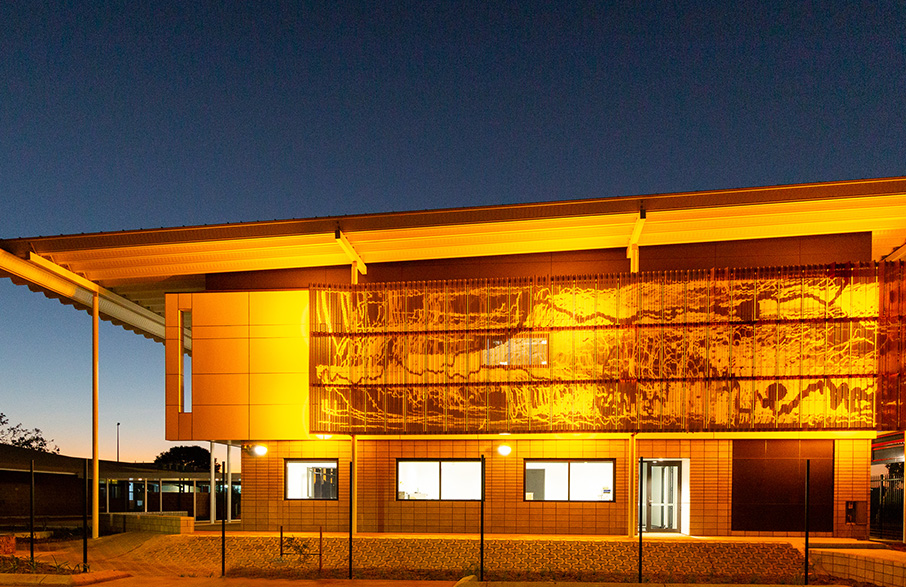

Tailored for your project

Arcadia has developed the broadest range of Perforated Metal Façade patterns for Architects and Designers to choose from. The breadth of our Muse® Perforated Metal profile range includes Round Straight, Round Staggered, Square Straight, Square Staggered, Slots Straight, Slots Staggered and Hexagon Staggered. Upon request Arcadia can offer custom perforated panels and custom fixing systems synchronised to your building façade. As part of our holistic approach to solar shading, Arcadia can offer a complete design-to-implementation service for custom solutions. These solutions can be created using custom repeating patterns, picture perforations and 3D metal forming techniques. See Arcadias other Perforated Product range (links to Image Perf, 3D Perf, Laser).

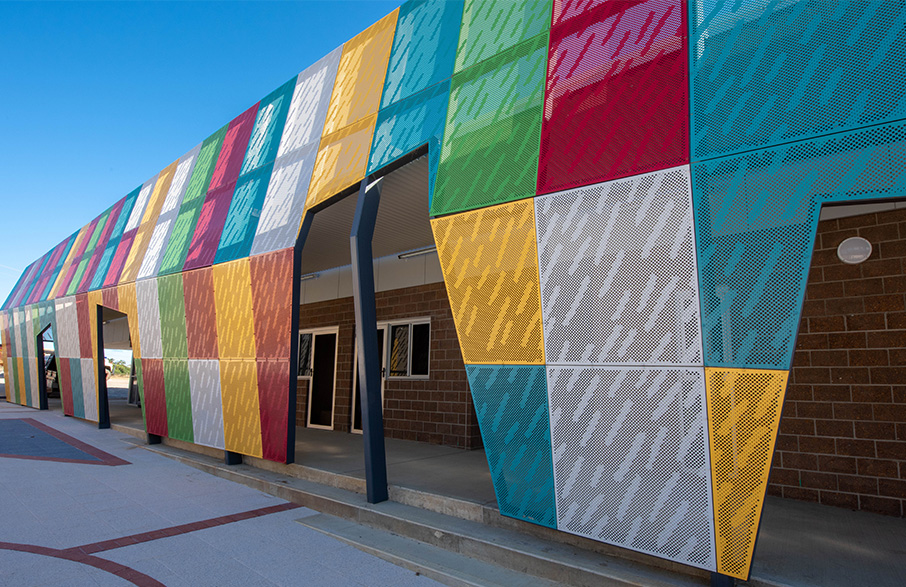

Adding Colour to Perforation

Designers can select from an endless collection of colours and finishes to perfectly complement creative architectural designs. With a broad range of Powdercoat and anodise available the possibilities are endless for architects when integrating the Muse Perforated within building Facades. Our broad colour collection is AS Compliant, sustainable, durable, and are guaranteed with a long-term warranty.

Applications
