Pulse® M Electric Louvres

Overview

Pulse® Operable Louvres assist in achieving controllable environments and enable airflow and natural ventilation to meet building design compliance. Commonly used in Architectural applications, these Louvres can be connected to Building Management Systems and interfaced with climate control requirements. Arcadia Pulse® operable louvre range can be powered electrically or via manual operation.

Frame Depth75, 100, 150
Max Panel Size1.2m width, 2.4m height
MaterialColorbond®, Galvanised, Aluminium
FinishPowdercoat, Anodised, Colorbond®
Weight (kg/m2)18
ConstructionModular Panels
OperationElectric, Pneumatic, Manual
Free Area45%
Frame Depth100, 150
Max Panel Size1.2m width, 2.4m height
MaterialGalvanised, Aluminium, Powdercoat
FinishPolycarbonate, Glass, Fibreglass, Colorbond®, Aluminium
Weight (km/m2)28
ConstructionModular Panels
OperationElectric, Manual
Free Area83%
Frame Depth100, 150
Max Panel Size1.2M width, 2.4m height
MaterialColorbond®, Galvanised, Aluminium
FinishPowdercoat, Anodised, Colorbond®
Weight (kg/m2)18
ConstructionModular Panels
OperationElectric, Pneumatic, Manual
Free Area85%
Depth (mm)46
Max Width (mm)1500 W 3000 H
MaterialAluminium
FinishPowdercoat & Anodised
Weight (kg/m2)35 - 40
ConstructionModular Panels
OperationManual & Electric
Glass Thickness (mm)8, 10, 12
The Pulse® M Operating Louvre has the louvre blades contained within the frame depth from the fully open to the closed position. The louvre blades open to 45° to provide a weather resistant louvre in normal weather conditions and the option to close the louvre in severe weather conditions. Louvre depths available range from 75mm to 150mm.

Features

Innovative Solutions

Pulse® Operable Louvres provide multiple benefits, such as; the introduction of fresh air to improve working environment, morale and productivity, increased energy efficiency through use of natural ventilation, high discharge efficiency, electric, pneumatic and manual control options

High-tech accessories

Through Arcadia’s years of experience, we have come to appreciate that no buildings have ever the same design requirements. Due to this we have developed a range of accessories for specific control to successfully manage variable weather conditions. Designers have the option to integrate rain or wind sensors. The Pulse ® Series has the capacity to communicate with building management systems (BMS) or with the fire management systems. Arcadia also offers a range of security, impact and mesh screens to suit the specific building design requirements

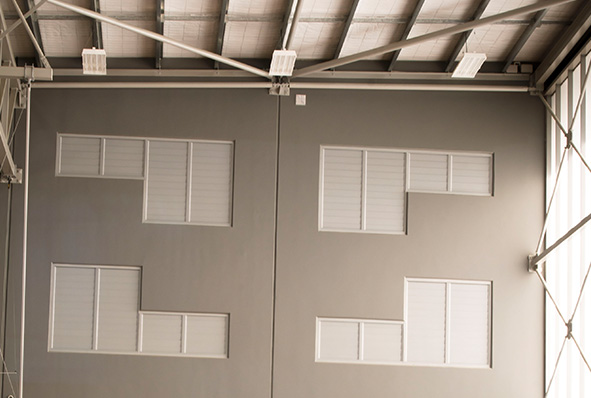

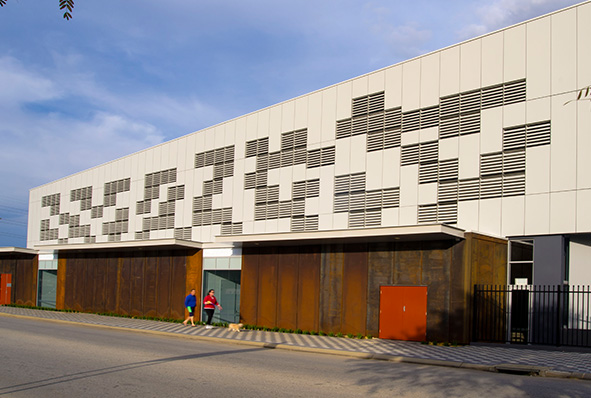

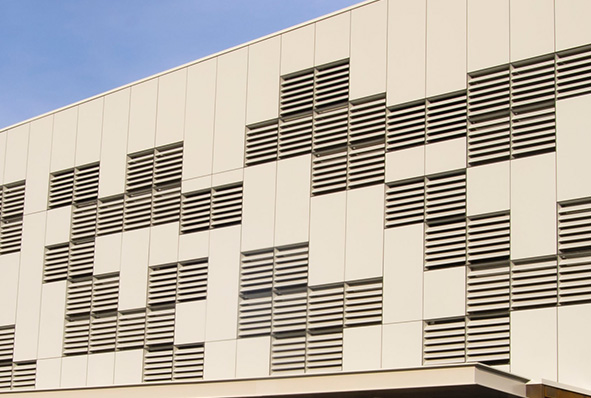

Applications
